|Subcategory||:||1:72 Hobby Master|
|Scale||:||1 : 72|
This product was added to our database on Monday 6 November 2017.

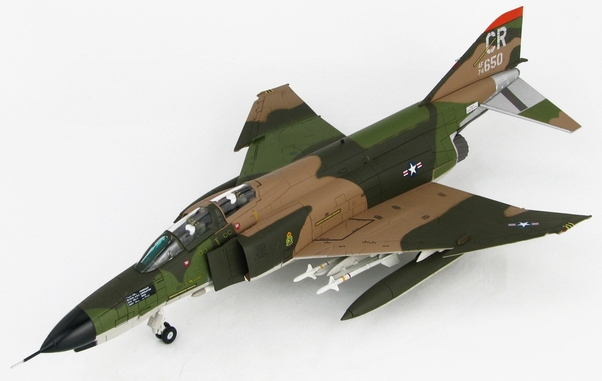

Category Aircraft Models, Subcategory 1:72 Hobby Master, Scale 1 : 72, ISBN/Box HA1979, Publisher/Brand Hobbymaster
True 1/72 scale
Great attention to detail
All markings are Tampoed (pad applied)
Option to display the model on a stand that is provided
Model can be shown with the landing gear in the down or up positions
Canopies can be displayed open or closed
Extremely heavy metal with a minimum of plastic
The McDonnell Douglas F-4 was the main multipurpose aircraft for the US Military for 20 years.
The F-4E variant was an improved version of the C/D with an elongated nose and compact
radar. These two things made it possible to install a 20mm M61A1 6 barrel 640 round Vulcan
gun pod in the nose. The F-4E was the most produced variant with 1387 aircraft being made
over its 12 year production period. The Â“EÂ” also equipped more air forces than any other variant
of the Phantom II.
McDonnell Douglas F-4E 74-0650 was manufactured as c/n 4801 and spent 1976 Â– 1978 with
the 32nd TFS Â“WolfhoundsÂ” located at Soesterberg AB, Netherlands. The 32nd TFS was the
first unit in Europe to be equipped with the new McDonnell Douglas F-4E. In 1979 the aircraft
began the first of several active duty reassignments starting with the 86th TFW and ending in
1991 with the 35th TFW. In June 1991 74-0650 was sent to storage at AMARC. In 1994 the
32nd TFS permanently left Soesterberg Air Base.
Specifications McDonnell Douglas F-4E Phantom II
Engines Â– (2) General Electric J79-GE-17 turbojets
Thrust Â– 11,870 lb. st dry, 17,900 lb. st with afterburners
Maximum internal fuel - fuselage tanks 1,364 US gallons (up to block 40) and 1,225 US gallons
(from block 41 on).
Additional - 630 gallons of fuel in internal wing tanks.
External fuel load - 600 US gallons centerline tank
Additional - 370 US gallons tanks under each wing attached to the outer pylon
Total fuel load - 3334 US gallons (up to block 40) or 3195 US gallons (from block 41 on)
Maximum speed Â– 1,430 mph at 36,000 ft (Mach 2.21)
914 mph at sea level (Mach 1.19)
Cruising speed Â– 585 mph
Landing speed Â– 158 mph
Initial climb rate Â– 61,400 fpm
Service ceiling Â– 62,250 ft
Combat ceiling Â– 59,600 ft
Combat range - 595 miles
Maximum range - 1885 miles with maximum external fuel
Empty - 29,535 lbs
Gross - 40,562 lbs
Combat - 38,019 lbs
Take off - 61,651 lbs
Wingspan - 38 ft 5 in
Wing area - 530 sq ft
Length - 63 ft 0 in
Height - 16 ft 6 in
(1) 20-mm M61A1 cannon with 639 rounds in an under-nose gondola
(4) AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed slots in the
(2) to (4) AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the wings on the
Total offensive load of up to 16,000 pounds could be carried on the centerline and four under-
