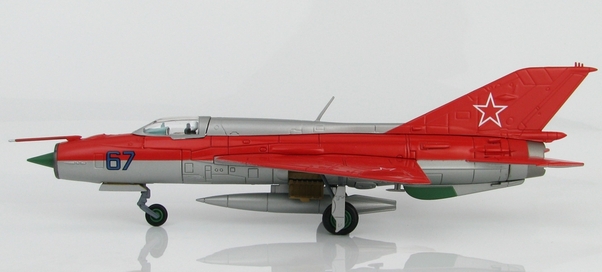

MIG21PFM Soviet Air Force, "Aerobatic Team", No.67, Soviet Air Force, Kubinka AFB, 1967

True 1/72 scale
Professionally painted
Great attention to detail
All markings are Tampoed (pad applied)
Option to display the model on a stand that is provided
Model can be shown with the landing gear in the down or up positions
Loads of optional armament has been provided
Canopy can be displayed open or closed
Extremely heavy metal with a minimum of plastic
Highly collectable

The Mig-21 was originally built by the Mikoyan and Gurevich Design Bureau in the
Soviet Union with a NATO nickname Fishbed. No other jet has had as many planes
produced as the Mig-21. Depending on the reference source 8,000 - 13,000 planes of
all versions were made in the Soviet Union, under license to allied countries and China
without license. A small, fast, agile, dependable and most importantly simple making it
easy to turn out great numbers of the plane.


The first official Soviet air show was held in 1933. They flew 5 IL-16 aircraft, 4 were
painted red and the lead aircraft remained an olive green. In 1934 the exhibition moved
to Tushino Airfield outside Moscow. After WWII the Soviets began to use Yak-15s, MiG-
15s and MiG-21s with the upper half of the fuselage painted red. Most aircraft were
drawn from the 176th Air Regiment who later became the 234th AR based at Kubinka in
1952. The last Soviet airshow took place at Domodedovo Airfield in 1967 using MiG-
21PFM.


MiG-21PFM was part of the Soviet Second Generation of Interceptors 1961 - 1966

MiG-21PFM (1964; Izdeliye 94; NATO – Fishbed F
Export version with a different IFF system, not capable of carrying S-24 rockets or ZB-
62 Napalm
Bombs
PFM meaning
P – Perekhvatchik (Interceptor)
F – Forsirovannyy (Uprated)
M – Modernizirovanyy (Modernized)


Mig-21MF Specs:

Power Plant:
One 41.55kN (9,340lb st) or 64.73kN (14,550lb st) with afterburner Tumansky R-13-300
turbojet

Dimensions
Wingspan: 7.15m (23ft 5˝in)
Length: 15.76m (51ft 8˝in) - including Pitot boom
Max T-O weight: 9,400kg (20,725lb)

Performance
Max speed: Mach 2.1 (2,230km/h - 1,385mph) above 11,000m (36,000ft) Mach 1.06
(1,300km/h - 807mph) at low level
Range: 1,100km (683 miles) - internal fuel only 1,800km (1,118 miles) - with three
external drop tanks, one under fuselage, one under each wing

Armament
One 23mm twin-barrel GSh-23 cannon with 200 rounds in belly pack
Various air-to-air and air-to-ground stores carried on four under wing pylons including:
K-13A "Atoll" or "Advanced Atoll" a-a missiles,
UV-16-57 rocket packs,
S-24 a-s rockets,
250kg and 500kg bombs
1 X centre line drop tank.
