Retina Blue

RETINA Blue is available in a design format that allows assembly on-site. READY-TO-ASSEMBLE.

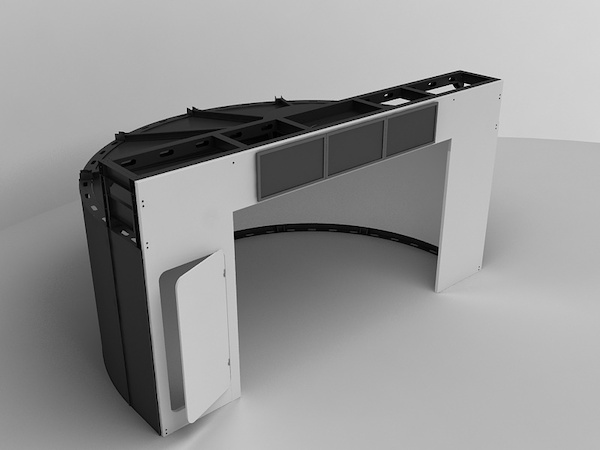

Fixed-base full cabin system RETINA Blue is created using high quality laser cut metal frame and seamless screen ensuring smooth and continuous image with sense of full immersion. Display system provides horizontal viewing angle of up to 210°.
Display system is designed to be easy assembled on-site and transported in tailor made box to be erected in any location.
AGRONN provides customized display system solutions of any size and degree to meet customers' requirements.

RETINA Blue can be applied in various ways:
" For visualization applications
" For fixed base simulators

Excellent for:
" Education & Training (Flight, Driving, Military)
" Government & Infrastructure projects
" Control rooms / Simulator rooms
" Museums, theme parks, galleries
" Gaming, entertainment

SCREEN SPECIFICATIONS

COLOR: white
MATERIAL: seamless polyester fabric
WEIGHT: 1050g/m2
ANGLE: 180°/210°
BRIGHTNESS: 1 gain
INSTALLATION: Special stretching application
DIMENSIONS: Height 2150mm
Length 10050mm

SYSTEM SPECIFICATIONS

CEILING: Tensioned fabric
OUTER WALL: Wall cladding
FRONT WALL: Demountable partition with service
PROJECTOR BOX: 3 pieces of adjustable projector hangers + ventilation
FRAMEWORK: Laser cut metal construction
FINISHING: Powder coated
COLOR: Black
FASTENING: M8 bolt + rivet nut
FIXING: Self-standing unit (optional: ceiling + floor fixing)
DIMENSIONS Height 2400mm / 3000mm
Width 5000 mm
Depth 3700mm
Thickness 150mm

OPTIONAL

Floor and ceiling fixing
Projector box ventilation x2
Monitor hangers
Electrical and display panel
Electric and display system box
Cabling
Fingerprint access
Red/Green warning lights
Wrapping software
System installation and software set-up


ADDITIONAL INFORMATION:

1. Customer is responsible for all shipping costs, as they depend on final destination and shipping method. Retina weighs around 600 kilogram.
2. Travel and expenses for on-site installation (2 or3 persons) are covered by customer.
3. One-year warranty against defects in materials manufactured by AGRONN.
4. Extended warranty for second and third year is also applicable.
5. PC is not included.
6. Projectors are not included.
