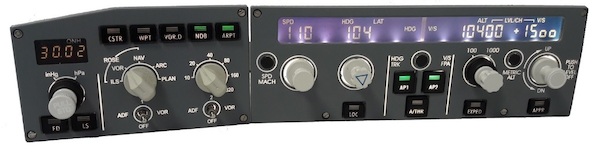

A320 FCU Captain EFIS set.

A320 FCU plus Captain EFIS Only.

Backlight color: Warm White.
Engravity backlighted pushbuttons.
Pushbuttons legend backlight color: White.
Pushbuttons active status LED color: Green.
Encoders characteristics: machanical with PUSH/PULL function, 20 increment for rotation (with detent).
Knobs: aluminium dust-coated (with symbols).
External or internal display brightness regulation.
External or internal backlight brightness regulation.
Display: Custom made backligted LCD.
Display color: Warm white.
4 digital encoders: SPD/MACH, HDG/TRK/LAT, ALT, V/S.
Dual concentric ALT Knob (external knob for x100 / x1000 exchange).
16 bit Flash microcontroller.
DIN 5 pole socket for plug&play CPflight modules interface..
USB Interface (USB cable provided).
Supply: 6Vdc 1A (supply adapter provided).

CPflight CAPTAIN is a full scale replica of AIRBUS FLIGHT CONTROL UNIT. The module is complete and ready to use and interface with Microsoft Flight Simulator through Project Magenta or AST software. FCU320 is connected to the PC through USB. Package include an universal power supply adapter and USB cable. USB driver can be free downloaded at CPflight web site download page.

FCU320 interfaces with Microsoft Simulator through Project Magenta FCU and AST software. The hardware establish an interface with PM/AST software; logics, operating modes and aircraft behavior are managed by PM/AST.
FCU320 is equipped with high quality level components. Digital encoder, custom display LCD, Engravity custom solutions for frontplate and pushbuttons give a high fidelity performances and a never seen realism. Knobs are made in aluminium dust-coated with symbols on HDG and VS knobs. FCU320 have warm white backlight.
FCU320 comes provided with wide expansion capability through the DIN 5 pole auxiliary socket. This allows you to connect and interface CPflight plug&play expansion modules (future development).

Based on a 16 bit microcontroller, CPflight FCU comes with 4 digital encoders able to command all functions you may find on a real FCU Flight Control Unit. All 4 encoder have the push/pull functions. The custom baclighted LCD display assure a perfect management of all display label like a real FCU. You can regulate the display brightness and contrast to always have a perfect relation with the existing light. The panel is equipped with: 6 integrated lights pushbuttons, 3 round push button, 100/1000 rotary switch selector. The FCU320 already have on board the sockets where connect the two EFIS ( CP and FO ). The EFIS are directly powered and managed by the FCU, you don't need further supply adapter or cables. The flash memory technology of the microcontroller gives you a simple way to upgrade the built-in operating program (Firmware). This feature is useful for update your FCU with improvement and future expansion.

The front panel (dimensions 260mm width and 90mm height) is backlighted. The backlight does not require any external addition, everything is built-in the FCU and the control is directly given by Flight Simulator instrument light status or connecting an external switch to the related input ( refer to the FCU manual; External backlight control section ).

PROGRAM MODE

FCU320 firmware provide an intenal program mode to configure the main preferences in the hardware functionality. No need PC software program to configure the FCU320 hardware. In program mode you can set how to control the BACKLIGHT (internal or external) the DISPLAY BRIGHTNESS and some other functions.
