B737 Audio Selection Panel Pro2  ASP737PRO2
B737 Audio Selection Panel Pro2  ASP737PRO2 image 1B737 Audio Selection Panel Pro2  ASP737PRO2 image 2

B737 Audio Selection Panel Pro2

Product code ASP737PRO2

€ 299.13


Series CPFlight

Publisher/Brand CP Flight

Category Flight Simulation

Subcategory B737NG Pedestal CP Flight

Availability Temporarily Out of Stock.

Click here to be notified when this product becomes available again

Add this product to my wishlist

This product was added to our database on Friday 14 October 2016.

Share this product

Your reliable Aviation Gift Source since 1989

Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Product description

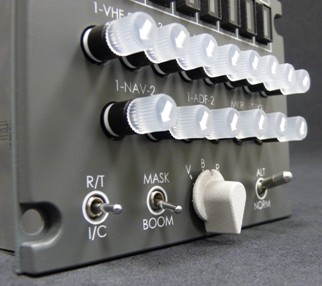

B737 Audio Selection module PRO version 2

Important: This is NOT a set of two audio modules, this just one audio module.

Full scale replica Boeing 737 of CP & FO Audio Selector panel
Warm white backlighting front panel
High quality backlighted pushbuttons and MIC selectors
The module is supplied with aluminium fasteners, screws and nuts (optional ¼ turn fastners)
10 bit resolution for volume regulation on each channel
14 potentiometer with latching push functions and illuminated knob
1 high quality locking lever, 1 R/T- I/C 3 position momentary switch, 1 ALT/NORM 2 position switch, 1 VBR 3 position rotary selector.
Direct daisy-chain connection to MCP737 through single 5 pole cable (70 cm provided).
This is an expansion module and require CPflight MCP737 EL or PRO to work
The ASP panel is a semidummy product
-TRANSMITTER MIC SELECTOR: VHF1 and VHF2 only are operating (other pushbuttons are inop)
-RECEIVER SWITCH: they are not potentiomenter, volume regulation is not supported.
Only press to activate (illuminated).
Only the VHF 1, VHF 2, NAV 1, NAV 2, ADF 1, ADF 2 and MKR are operating, the other functions are inop.
Each module is supplied with 60cm lenght connection cable and mounting kit.
The mounting kit include aluminium fasteners, screws and nuts.
The mounting kit is supplied unpainted, the color for painting is gray mat RAL 7011.
Longer connection cable (3,5mt) is available at purchase page.
The module is standard provided with "warm white" backlight.

This is an expansion modules and require MCP737EL or MCP737PRO to operate.

Compatible with Flight Simulator X, Flight Simulator Steam Edition, Prepar 3D ( V1, V2 and V3), Project Magenta, PROSIM737, PMDG737NGX, iFly737.

For more information: ASP737PRO Dimension.pdf
