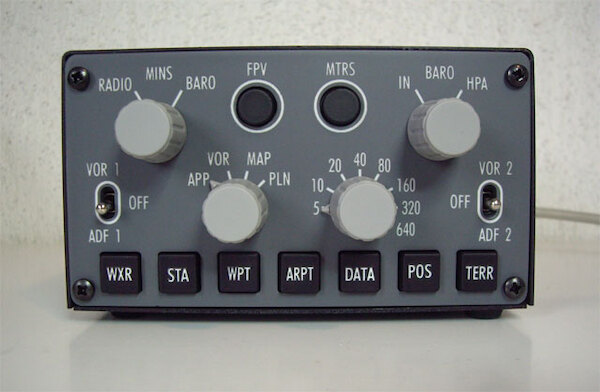

B737 EFIS module, fully assembled.  2M5

B737 EFIS module, fully assembled.

2M5

€ 144.59



Scale 1 : 1

Series SIOC

Publisher/Brand Opencockpits

Category Flight Simulation

Subcategory B737NG Glare Opencockpits

Availability Temporarily Out of Stock.

Click here to be notified when this product becomes available again

Add this product to my wishlist

This product was added to our database on Friday 17 October 2008.

Share this product

Your reliable Aviation Gift Source since 1989

Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Product description

B737 EFIS module fully assembled.

Requires SIOC software 4.3 or higher.
Fsuipc.dll required.

IMPORTANT: Power Source NOT included.
External power supply is required for backlights (5 volts, 500 mA)
Connector: Jack 3.5mm Male. Positive in center.

Software Drivers "SIOC program" required, please see Downloads.

The module is fully compatible with the rest of IOCards and other Opencockpits modules.

Operational fuctions:

RADIO ALTIMETER
BARO
MINIM
STANDARD PRESURE
FPV
MTRS
VOR1/ADF1
VOR2/ADF2
MODES APP,VOR,MAP,PLN
CTR
TFC
DISTANCES: 5,10,20,40,80,160,320,640
STA
WPT
ARPT
DATA
POS
WXR (supplied separately)
TERR (supplied separately)

Compatibility:
FS2004, FSX, FSXSTEAM, P3D, XPLANE

Backlight included.
External power supply is required for backlights (5 volts, 500 mA)
No additional cards needed.
Module completely finished or assembly kit available.
Dimensions aprox W:118mm H:64mm D:102mm. (D:57mm without box).

Software: SIOC ver 4.6B1.
For more information: EFIS test program
Manual: Installation and user's manual (includes all necessary files to use).
Extra Drivers and scripts to use the MCP V3, EFIS & NAV with X-Plane 10 (by Andrés Oteiro).
