B737 Flap Indicator dual needle (GSA-055 usb interfase required)  GSA-044


B737 Flap Indicator dual needle (GSA-055 usb interfase required) (Flight illusion GSA-044)

€ 220.62
EU: incl. tax € 266.95
Add to cart
Category:Flight Simulation
Subcategory:B737NG MIP Flight Illusion
ISBN/Box:GSA-044
Publisher/Brand:Flight illusion
Availability:only 2 remaining

This product was added to our database on Wednesday 21 August 2013.



Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Category Flight Simulation, Subcategory B737NG MIP Flight Illusion, ISBN/Box GSA-044, Publisher/Brand Flight illusion

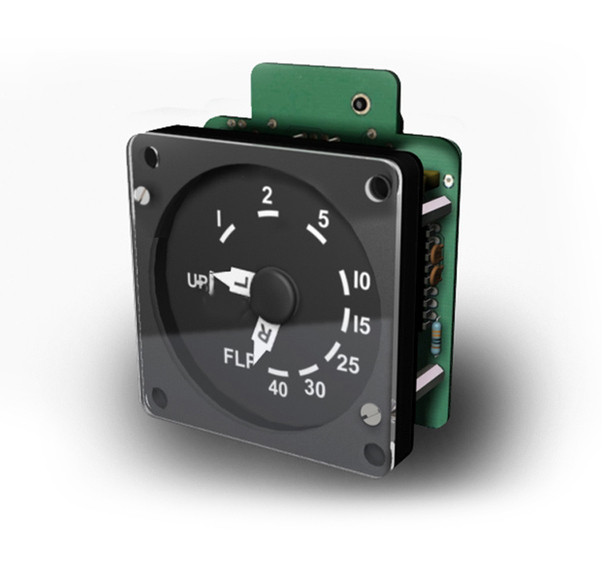

The GSA44 is based on a dual concentric needle gauge is and has the proper faceplate for indication Flaps position. The pointers (L/R) give the flap position on respectively the left and right wing.

Compatibility:
Windows XP, Windows Vista, Windows 7, Windows 10.
FS2004, FSX, FSXSTEAM, P3D, XPlane
Prosim737, Project Magenta

You will need the GSA-55 to connect the gauge to the simulator.
The Central Interface Module connects trhough a standard USB sokket. That allows for fast data transfer.

The faceplate shows a Boeing flap configuration with 9 positions, ranging from UP,1,2,5,10,15,20,25,30,40 degrees.

The stepper motor gives very smooth needle movements. The GSA44 comes without a bezel so it can be mounted directly behing existing panels, Engravity or any other MIP panel manufacturer.


You will need the GSA-55 to connect the gauge to the simulator.

Advantages...

IMPORTANT: Warm white backlight
Attachment screws NOT included.

Simbuilding shouldn't be an expensive hobby. And reaching for a result that is close to reality should remain affordable. That is why we try to offer the best price/quality ratio. And that's a lot of quality, if you keep reading on.

Most compact instruments on the market:
There is no reason why a simulated instrument like a gauge must have the same dimension as the actual gauge. With stepper motor driven G-STEP technology our gauges have a depth of approx. 1 inch or 25 mm. This reduces dramatically the depth of your panel and allows for easy access and maintenance. Furthermore it reduces the prices, because there is no housing.

Plug & Play:
Absolutely no programming. Not one single line of code. Just assign a gauge, a switch, a led to the respective Flight Simulator function, which can be an instrument, a switch position or an annunciator light. The calibration of each gauge is performed once in our software and is automaticly with each start of FS.

Daisy chained instruments:
Because your cable goes directly into any next gauge, you don't need a cluttering of cables from each instrument to the central control unit. With the daisy chained instruments, you simply connect 1 instrument with the Central Interface board. Spagetti times behind your panel are over.

G-STEP® technology:
Flight Illusion created this G-STEP® technology in order to overcome jerky movements and offer an acceptable solution for spacing.
By using stepper motor instead of servo motors, the G-STEP® gauges are moving in exactly the same way as when seen on the panel on screen.
Each full rotation of a needle is divided into 1080 steps, resulting in a smooth and precise indication with an extreemly quick response time. And in crucial phases of your flight, this might be very important.
