B737 ICS MIP panels  complete  MIP737ICS_FULL

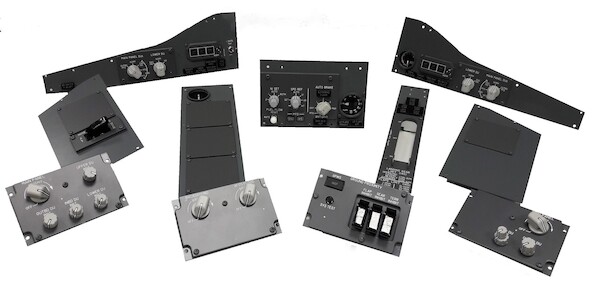

B737 ICS MIP panels complete (CP Flight MIP737ICS_FULL)

€ 2900.00
EU: incl. tax € 3509.00
Add to cart
Category:Flight Simulation
Subcategory:B737NG MIP CP Flight
ISBN/Box:MIP737ICS_FULL
Series:CPFlight
Publisher/Brand:CP Flight
Availability:Not in stock. Will be ordered from the manufacturer or publisher. Advance payment required. Delivery time expected 5 weeks after receipt of payment

This product was added to our database on Saturday 2 March 2019.



Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Category Flight Simulation, Subcategory B737NG MIP CP Flight, ISBN/Box MIP737ICS_FULL, Series CPFlight, Publisher/Brand CP Flight

The MIP737ICS2 is a series of modules that integrates the electronic and hardware to support the functions of the Main Instrument Panel of B737NG simulator.
All switches, annunciators and gauges are already installed and working, no more electronic component is needed.
The connection between MIP737ICS2 sections are made through flat cables.

MIP737ICS2 is a plug&play expansion module and requires the CPflight MCP737 (EL or PRO/PRO2 version) to operate.
The MIP737ICS2 works with Project Magenta, Prosim737, PMDG737NGX, iFly/37 and the most common FS add-on software.
The working functions are depending by the Add-on installed software; the hardware supports all the MIP737 functionality.
Please read carefully the manual to install MIP737ICS2 in your structure.
The MIP737ICS2 is available in full configuration and also in partial configurations.
5 pole cable, power supply and screws to fix the modules to the structure are included.
To allow the MIP737ICS2 function, the MCP737 firmware revision has to be updated to the last version. More information about the firmware update are reported on the MCP operation manual.
Switches, annunciators, LED's and knobs are already installed and working.
The module is fully assembled with connection cables and connector to plug NOSE WHEEL STERING switch and Below G/S annunciator.
Center module section is supplied with aluminium backplate and backlighted front panel.
N1 SET and SPEED REF are dual concentric Rotary switches with encoder.
Autobrake "MAX" position is guarded position so to set "MAX" position you have to pull and rotate the knob.
Center module is provided fully assembled with the connector to plug all flat cables that come from the other modules. All the connectors have a key to avoid reversed connection. MIP737ICS2 center module includes a backlighted FLAPS Gauge with 2 indipendent needles to show Left and Right position.
FO module section is supplied with backlighted front panel.
Switches, rotary, annunciators, LED's and knobs are already installed and working.
FO module includes BACKLIGHTED Brake Press gauge.
Lower module section has functional single and dual concentric potentiometers.
All is provided with aluminium backplate and backlighted front panel.

Why choosing CPFlight?

MIP737ICS2 is a plug&play system, no need of any configuration file or script.
You need only to connect to the MCP that will automatically reknow the modules and will start to communicate with the entire system.
The MIP737ICS2 is connected to the MCP through a 5 pole expansion socket.
Connect a plug of the enclosed 5 pole cable to one of the MIP737ICS2 sockets and the other side to the AUX socket on the MCP737 backpanel.
If you have other modules (pedestal modules) you can connect them to the second socket of the MIP737ICS2 using the BRT737DC board (daisy-chain).

Compatible with Flight Simulator X, Flight Simulator Steam Edition, Prepar 3D (V1, V2 and V3), Project Magenta, PROSIM737, PMDG737NGX, iFly737, LVLD767, xPlane.
MIP737ICS2 is an expansion module and requires MCP737EL or MCP737PRO/PRO2 to operate.

Downloads: PDF Instruction Manual (press to open)
