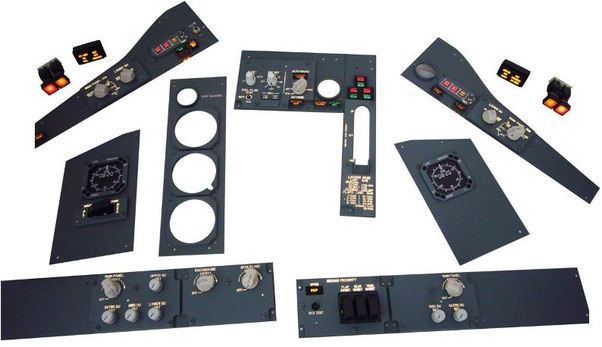

B737 ICS MIP panels (with subpanels)  MPICS1080
B737 ICS MIP panels (with subpanels)  MPICS1080 image 1 B737 ICS MIP panels (with subpanels)  MPICS1080 image 2 B737 ICS MIP panels (with subpanels)  MPICS1080 image 3 B737 ICS MIP panels (with subpanels)  MPICS1080 image 4 B737 ICS MIP panels (with subpanels)  MPICS1080 image 5 B737 ICS MIP panels (with subpanels)  MPICS1080 image 6 B737 ICS MIP panels (with subpanels)  MPICS1080 image 7 B737 ICS MIP panels (with subpanels)  MPICS1080 image 8 B737 ICS MIP panels (with subpanels)  MPICS1080 image 9 B737 ICS MIP panels (with subpanels)  MPICS1080 image 10 B737 ICS MIP panels (with subpanels)  MPICS1080 image 11 B737 ICS MIP panels (with subpanels)  MPICS1080 image 12 B737 ICS MIP panels (with subpanels)  MPICS1080 image 13 B737 ICS MIP panels (with subpanels)  MPICS1080 image 14 B737 ICS MIP panels (with subpanels)  MPICS1080 image 15 B737 ICS MIP panels (with subpanels)  MPICS1080 image 16 B737 ICS MIP panels (with subpanels)  MPICS1080 image 17

B737 ICS MIP panels (with subpanels) (Engravity MPICS1080)

€ 2427.23
EU: incl. tax € 2936.95
Add to cart
Category:Flight Simulation
Subcategory:B737NG MIP Engravity
ISBN/Box:MPICS1080
Publisher/Brand:Engravity
Availability:Not in stock. Will be ordered from the manufacturer or publisher. Advance payment required. Delivery time expected 4 weeks after receipt of payment

This product was added to our database on Thursday 27 June 2013.



Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Category Flight Simulation, Subcategory B737NG MIP Engravity, ISBN/Box MPICS1080, Publisher/Brand Engravity

MIP737ICS

The MIP737ICS consist of a series of modules that integrate the electronic and hardware to support the functions of the B737 Main Instrument Panel.
The modules are full scale and fit with Flyengravity MIP frame. All switches, rotaries and annunciators are already installed and working, no more electronic component is needed. The connection between the MIP737ICS sections are made through flat cables, all cables are provided to allow an easy installation.

Note: MIP737ICS is an expansion modules and require the CPflight MCP737 (RS232, USB, EL or PRO version) to operate.
For the Flight simulator and related add-on compatibility refer to the MIP737 board at "Compatibility" page.
Please read carefully the manual for connection and assembling instructions.

--------------------------------------------------------------------------------------------------------------------------------

MIP737ICS - Captain Section:
Provided with aluminium backplate and backlighted front panel. Switches, rotary, annunciators, LED's and knobs are already installed and working. MIP737ICS Captain side is provided fully assembled with connection cables and connector to plug MASTER CAUTION, FIRE WARNING switches and SIXPACK recall annunciator (provided). The MASTER CAUTION and FIRE WARNING switches are connected to the Captain Module through the provided flat cables.
A further socket allows the connection of the nose wheel stering switch and the related panel backlight on the chronometer section (Chronometer gauge is dummy).

MIP737ICS Captain side include
Aluminium backplate
Main Panel Dus and lower DU backlighted panel
Main Panel Dus and lower DU rotary selector with knobs
BELOW G/S P.INHIBIT annunciator and legend
SPEED BRAKE ARMED annunciator and legend
SPEED BRAKE DO NOT ARM annunciator and legend
STAB OUT OF TRIM annunciator and legend
AP P/RST, AT P/RTS and FMC pushbutton
3 position test switch
3 position light test switch
Aluminium Chronometer Captain side backplate
Nose Stering wheel switch with safety cover
Nose Stering wheel backlighted panel
Dummy Chronometer gauge

--------------------------------------------------------------------------------------------------------------------------------
MIP737ICS - Center Section

The MIP737ICS Center section hold the Main electronic board, all other panels are connected to this module.
The MIP737ICS Center section is ready to be connected to the CPflight MCP737/EFI737 through the provided 5 pole cable.
The MIP737ICS Center section is provided with aluminium backplate and backlighted front panel.
Switches, rotary, annunciators, LED's and knobs are already installed and working.

MIP737ICS Center section include •Aluminium backplate
Backlighted panel
N1 SET, SPD REF dual concentric rotary selector with knobs
AUTOBRAKE rotary selector with knob
AUTO BRAKE OFF annunciator and legend
ANTISKID INOP annunciator and legend
LE TRANS annunciator and legend
LE EXT annunciator and legend
Green NOSE LEFT and RIGHT Gears annunciator and legend
Red NOSE LEFT and RIGHT Gears annunciator and legend
ENG and SYS backlighted pushbutton
3 position FUEL FLOW switch
3 way connector to plug landing gear lever (landing gear lever not provided)
2 way connector to plug landing gear panel backlight (provided)
Aluminium LANDING GEAR backplate
LANDING GEAR backlighted panel
Aluminium Standby instruments panel backplate (gauge not provided)
Power supply adapter
5 pole cable for daisy chain connection

--------------------------------------------------------------------------------------------------------------------------------


MIP737ICS - First Officer Section

MIP737ICS FO side is provided with aluminium backplate
and backlighted front panel.
Switches, rotary, annunciators, LED's and knobs are
already installed and working.

FO Chronometer gauge is dummy.

MIP737ICS FO side include
Aluminium FO side backplate
FO Main Panel Dus and lower DU backlighted panel
FO Main Panel Dus and lower DU rotary selector with knobs
BELOW G/S P.INHIBIT annunciator and legend
SPEED BRAKES EXTENDED annunciator and legend
AP P/RST, AT P/RTS and FMC pushbutton
3 position test switch
Aluminium Chronometer FO side backplate
Dummy Chronometer gauge

--------------------------------------------------------------------------------------------------------------------------------
MIP737ICS CP SUBPANEL include Aluminium backplate
Main Panel, Background and AFDS brightness knobs regulation (CP Panel)
Glass Cockpit Captain side DU's brightness regulation (partially supported, see operation manuals for details)

MIP737ICS FO SUBPANEL include
Aluminium backplate
Main Panel bright knob regulation
Glass Cockpit F/O side DU's brightness regulation (partially supported, see operation manuals for details)
GPWS INOP annunciator and legend
Sys Test pushbutton
FLAP INHIBIT switch with safety cover
GEAR INHIBIT switch with safety cover
TERR INHIBIT switch with safety cover

Also included into MIP737ICS subpanel kit background and AFDS lights led strips, cables, fasteners and screws set.
