B737 MCP EL  MCP737EL image 1B737 MCP EL  MCP737EL image 2B737 MCP EL  MCP737EL image 3B737 MCP EL  MCP737EL image 4



€ 503.26

Scale 1 : 1

Publisher/Brand CP Flight

Category Flight Simulation

Subcategory B737NG Glare CP Flight

Availability only 2 remaining

Add this product to my wishlist

This product was added to our database on Thursday 13 August 2009.

Share this product

Your reliable Aviation Gift Source since 1989

Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Related products:
product Publisher/Brand Series/scale Price €
5 Pole Extension Cable5 Pole Extension CableCP Flight€ 9.05
 6VDC 1150mA Power SupplyCP FlightCPFlight€ 20.62
B737 ADF Radio ModuleB737 ADF Radio ModuleCP FlightCPFlight€ 216.49
B737 ATC radio module (Require MCP737EL or MCP737PRO to operate)B737 ATC radio module (Require MCP737EL or MCP737PRO to operate)CP FlightCPFlight€ 216.49
B737 COM radio module (Require MCP737EL or MCP737PRO to operate)B737 COM radio module (Require MCP737EL or MCP737PRO to operate)CP FlightCPFlight€ 199.96
B737 EFIS-EL version (Require MCP737EL or MCP737PRO to operate)B737 EFIS-EL version (Require MCP737EL or MCP737PRO to operate)CP FlightCPFlight€ 199.96
B737 Fire Panel module (require MCP737EL or MCP737PRO to operate)B737 Fire Panel module (require MCP737EL or MCP737PRO to operate)CP FlightCPFlight€ 752.02
B737 MCP ELB737 MCP ELCP FlightFSX, FSXSTEAM, P3D, XPLANE, Prosim737€ 503.26
B737 NAV Radio Panel ModuleB737 NAV Radio Panel ModuleCP FlightCPFlight€ 200.79
B737 Rudder Trim PanelB737 Rudder Trim PanelCP FlightCPFlight€ 301.61
MCP and EFIS Bracket.MCP and EFIS Bracket.Engravity€ 49.55
Product description

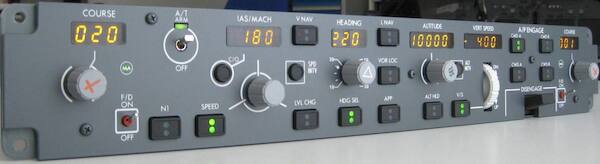

B737 MCP - EL version.

Compatible with Flight Simulator X, XPlane 9/10 and 11, Flight Simulator Steam Edition, Prepar 3D Version 1/2/3 and 4, Project Magenta, PROSIM737, PMDG737NGX, iFly737.

Full scale replica of Boeing 737 MODE CONTROL PANEL. The MCP737EL can be directly powered by the USB (USB 2.0 with 500mA current capability or an HUB with its own power is recommended). Trough the USB it is possible to supply the MCP and two EFIS selectors; a DC plug allows to connect an optional power supply to supply further expansion modules. USB driver and test program software can be free downloaded from CP-Flight website.

Full scale replica of Boeing 737 MODE CONTROL PANEL.
Custom Engravity backlighting frontplate.
Backlight color: Warm white.
Displays: Altitude, Vertical Speed, Heading, Speed, Left and Right Course.
Display characteristics: LED 7 segment. Digit height: 0,3" (7,6 mm).
Display color: yellow.
6 encoders to set: Altitude, Heading, Speed, Vertical Speed, Left and Right Course.
Encoders characteristics: Half million cycle rated, 24 increment for rotation (with detent).
Knobs: with symbols on course (both), heading and altitude knobs.
Toggle switch for Auto Throttle ARM switch with Green LED indication.
Toggle switches for Left and Right Flight Director with "MA" green LED indication.
Disengage bar.
N1, SPEED, LVL CHG, VNAV, LNAV, VOR LOC, APP, HDG SEL ALT HLD, V/S, CMDA, CMDB, CWSA and CWSB dual dot lighting buttons
C/O, Speed and Alt Intervention round buttons.
External or internal display brightness regulation.
External or internal backlight brightness regulation.
Central unit for daisy-chained connection of Efis selector (Captain and F/O), Mip and radios
16 bit Flash microcontroller.
DIN 5 pole socket for plug&play CPflight modules interface.
USB Interface (USB cable provided).
Compatible with all FS default aircraft, Project Magenta, PMDG, LVLD767, FlighDeckSoftware, Prosim737 and Sim-Avionics.

Dimensions 471 mm width / 73 mm height
Interface connection by USB
Power supply by USB connection (only MCP and 2 EFIS modules)
Extended power supply connector (needed when connecting more modules)

For more information: Downloads Driver Software and Manuals
