Publisher/Brand CP Flight
Category Flight Simulation
Subcategory B737NG Glare CP Flight
Availability only 1 remaining
This product was added to our database on Tuesday 6 November 2018.
Your reliable Aviation Gift Source since 1989
Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

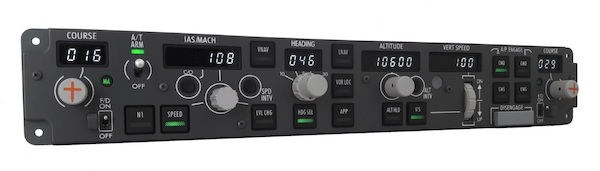

MCP737PRO3 is a full scale replica of a Boeing 737NG Mode Control Panel, look and functionality are reproduced with high details.
It is the core of an expandable system that allows additional hardware to be daisy-chained through it. The big advantage of this system is that you can add many other modules (EFIS's, radios, MIP modules) simply connecting them in daisy chain to the MCP through the provided cables (each module is supplied with its own 5 pole cable). Connecting a single ethernet cable you connect the MCP together with all the modules to your system. All the other modules are connected in chain to the MCP that manages the communication between them.
The MCP737PRO3 supports the mainly used FS add-on software; to know more about the compatibility with a specific add-on aircraft please refer to "Technical and documents" section.
MCP737PRO3 hardware establishes an interface with Flight Simulator/ Prepar3D and the used add-on; logics, operating modes and aircraft way of behaving are managed by the software.
The module is complete and ready to be used and does not require additional cards or software programming. Test program software can be free downloaded.
The panel is equipped with:
• 14 custom made switches with dual color legends: white backlighted text and neutral indicator with green light status. This, like in the real aircraft, allows high visibility only when in active status:
- LVL CHG
- HDG SEL
- VOR LOC
- ALT HOLD
• 3 round pushbuttons to select CO, ALT INT and SPEED INT functions
• Electromagnetic Auto Throttle ARM switch with green led indicator
• 2 Flight Director switches with "MA" green led indicator
• Vertical Speed thumb wheel
• Flat disengage lever.
• Electromagnetic disengage Auto Throttle ARM switch.
• Custom high resolution warm white backlighting frontplate.
• Custom made pushbuttons
• White color LED 7 segment Displays for Altitude, VS, Heading, IAS, Left and Right Course.
• Aluminium coating knobs (with symbols on course knobs).
• Bank angle selector with high reliability and swiss made dual concentric HDG-SEL knobs.
• New Grayhill® Optical encoders
• Display and backlight brightness regulation with external or internal control.
• AT disengage with control by the software and/or external input.
• Ambient light sensor for display brightness regulation
• 16 bit flash memory technology to upgrade the built-in operating program (for eventual future improvements and expansions)
• Central unit for daisy-chained connection of add-on modules
• 6Vdc 1A power supply (provided)
• Compatible with Flight Simulator X, Flight Simulator Steam Edition, Prepar 3D ( V1, V2 and V3) and add-on as Project Magenta, PROSIM737, SimAvionics, PMDG737NGX, iFly737, LVLD767.
The MCP737PRO3 firmware provides an internal program mode to configure the main preferences in the hardware functionality. No need for PC software programs to configure MCP737PRO3 hardware. In program mode you can set how to control the backlight, (internal, external or MIP-linked) the full scale display brightness and some other functions.
Why choosing us?
The MCP737PRO3 takes on charge all the connected modules, dealing the communication between them. MCP737PRO3 does not require further driver installations or software configurations, it only needs to be connected to the ethernet TCP/IP.
Behind the panel the thickness of our MCP737PRO3 is besides of about 31 mm.
