Dimcontrol Card.  2T21

Dimcontrol Card.

2T21

€ 33.02

Scale 1 : 1

Series SIOC

Publisher/Brand Opencockpits

Category Flight Simulation

Subcategory B737NG Accessories Opencockpits

Availability only 2 remaining

Add this product to my wishlist

This product was added to our database on Wednesday 7 May 2014.

Share this product

Your reliable Aviation Gift Source since 1989

Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.

Product description

Product Details

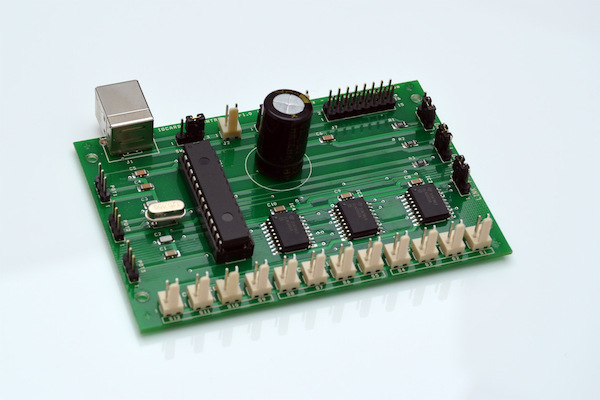

Card designed to control the backlight brightness by PWM control.
This card can control via USB up to 3 channels and 4 connections for each channel.

Compatible with:
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

Up to 50 volts , 1 Amp per connection and 2.5 amps total.

3 modes of control : control by USB , master control via potentiometer for 3 channels, individually controlled channels using potentiometers .

You can configure the USB with the specific software and write to the EPROM memory , to specify the Max. power for channel and power by default when the card is ON. Using the Master Pot, each channel can be set from 0 to Max . linearly.

The card in modes 2 and 3 need not be connected to the USB port.

Once configured, the card can increase the brightness of the 3 channels at once , automatically managing each channel can be configured for different intensities , which can be controlled at once different types of LEDs or bulbs.

Includes USB cable connection .

Manual: IOCard USB DimControl V1.1 user manual.
For more information: Management software for USB DimControl without SIOC.
For more information: Definition file for USB DimControl.
Software: SIOC 5.1B2
