MIND: this lheadset is presented and delivered in plastic bag! Not in a box.

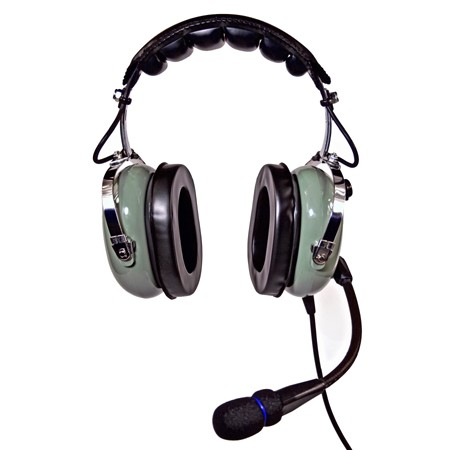

The Active Noise Reduction AN-1000AC ANR Headset is a headset that can isolate, offset and cancel noise. In comparison with passive headsets, it can, under noisy circumstances, provide a quieter and more comfortable sensation, by reducing background noise. Therefore, make it possible to improve the audio quality and articulation, resulting in a higher operation safety factor. The noise cancelling circuitry reduces outside noise considerably more than a standard headset, making it more comfortable for the pilot in the aircraft.
HEADSET NOISE ATTENUATION DATA
The noise reduction or attenuation characteristics of communication headsets must be measured according to an accepted standard procedure if the characteristics of different headset are to be compared in a meaningful way. The Noise Reduction Rating (NRR) is provided in accordance with U.S. EPA Regulation 40 CFR Part 211.Subpart B. The Range of Noise Reduction Rating for Existing Hearing Protectors is approximately 0 to 30. (Higher Numbers Denote Greater Effectiveness)
Frequency [Hz] 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation [dB] 14.3 21.5 27.1 31.8 36 39.5 41.3 39.7 37.0
Standard Deviation 3.3 2.4 1.5 1.6 1.3 2.1 2.1 2.0 1.3
ANR Aviation Headset (ANR power: two AA battery)
GA Use Dual Plugs
Super Soft Double Foam Head Pad
Noise-canceling electret Microphone
Precision flexible boom for perfect microphone placement
Easy-to-wear super soft silicone gel ear seals
Headband Size Adjustment
Straight cord from headset to molded plug, 150CM
Assembled strictly following the FAA TSO standards
Noise Reduction Ratings (NRR):24dB
Type: Dynamic (F30)
Frequency Response:50 Hz to 20 kHz
Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup side) full volume on ear simulator
Active Noise Attenuation:
Dynamic 42 ohms:
Rate Input: 30mW Max.Input:100mW
Dynamic 300 ohms:
Rate Input: 30mW Max.Input:100mW
Microphone and Amplifier:
Element Type: Noise-canceling electret
Frequency Response:100Hz to 5 kHz
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)
Operating Temperature: -20 to 70°C
Cordage: Straight cord from headset to molded plug, 150CM
Intercom Connections Plug:
Earphone Plug: PJ-055( .25"F6.3 phone plug)
Microphone Plug:PJ-068( .206"F5.2 phone plug)
Noise Reduction Specifications:
Attenuation Frequency Band__________20Hz~20KHz
Main Attenuation Frequency Band__________20Hz~600Hz
Power Consumption__________30 mW
Headset size range Height: 10 to 14 cm
Boom: Flexible Boom
NOTICE: ANR BATTERY MODULE OPERATION
1. The battery module requires two AA battery. The power of G2 ANR comes from AA battery, not aircraft power.

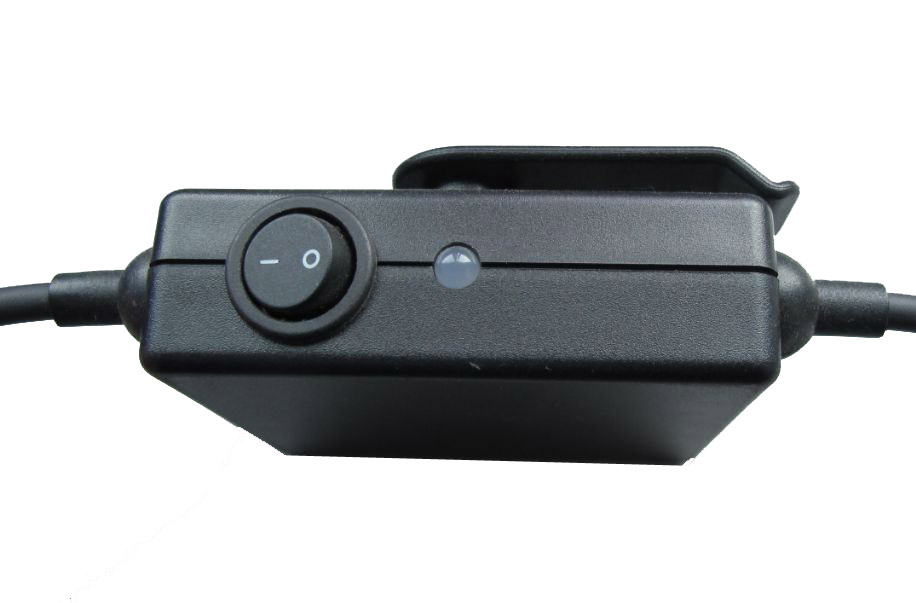

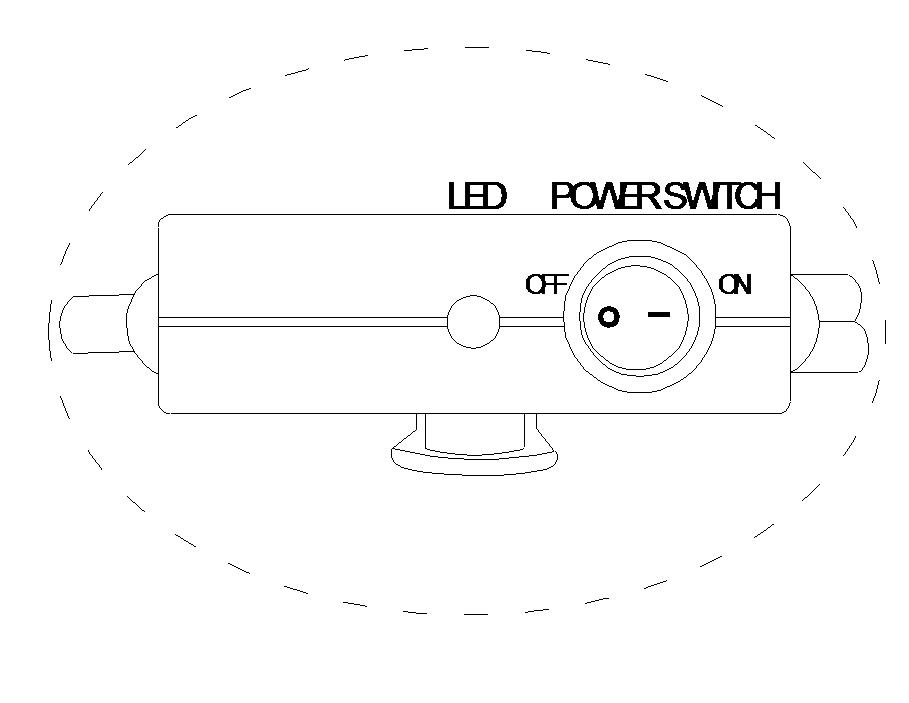

2. Figure 1: There are on/off switch, and Led light on the top of battery box.
A. When the switch is on (I), the Led will be on and the ANR function starts working.
When the switch is off (o), the power for the battery box is shut off and the ANR function stops working.
B. The Led is green when the power is on and the batteries are fully charged. The led turns red when the batteries are low.

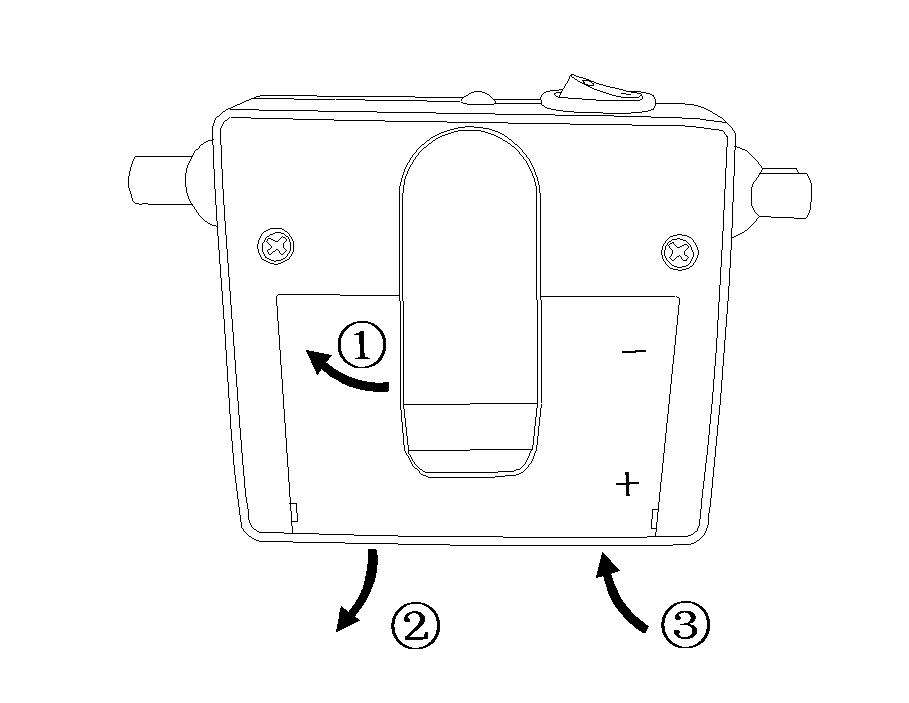

3. Battery changing: move the clip to the left or right; press the opener and push it out; put the batteries in according to the "+""-" signs inside; put the opener on and push it back. See figure 3.
To save on batteries, pls shut off the power when the headset is not in use.
