Pedestal Card  PCB-PED

Pedestal Card

PCB-PED

€ 29.71

Scale 1 : 1

Publisher/Brand Opencockpits

Category Flight Simulation

Subcategory B737NG Pedestal Opencockpts

Availability only 1 remaining

Add this product to my wishlist

This product was added to our database on Monday 26 May 2014.

Share this product

Your reliable Aviation Gift Source since 1989

Mind: cockpit controls and instruments are delicate equipment intended for careful private use. Damage or functional failures as a result of negligent or careless handling of these equipment, or as a result of commercial application will not qualify for any warranty.


Related products:
product Publisher/Brand Series/scale Price €
Dimcontrol Card.Dimcontrol Card.OpencockpitsSIOC€ 33.02
Display card cable.Display card cable.Opencockpits€ 3.26
Expansion CardExpansion CardOpencockpitsSIOC€ 37.98
Input Connection Board.Input Connection Board.OpencockpitsSIOC€ 18.14
Master CardMaster CardOpencockpitsSIOC€ 55.33
Outputs card (new version)Outputs card (new version)OpencockpitsSIOC€ 32.19
Outputs connection board.Outputs connection board.OpencockpitsSIOC€ 18.14
Parallel Cable.Parallel Cable.Opencockpits€ 7.40
Power supply 500w 3V, 5Vand 12V.Power supply 500w 3V, 5Vand 12V.Opencockpits€ 52.02
Servo-motor Tower ProServo-motor Tower ProOpencockpits€ 4.92
USB Outputs Card.USB Outputs Card.OpencockpitsSIOC€ 55.33
USB Servo Motor CardUSB Servo Motor CardOpencockpitsSIOC€ 25.58
Product description

Product Details

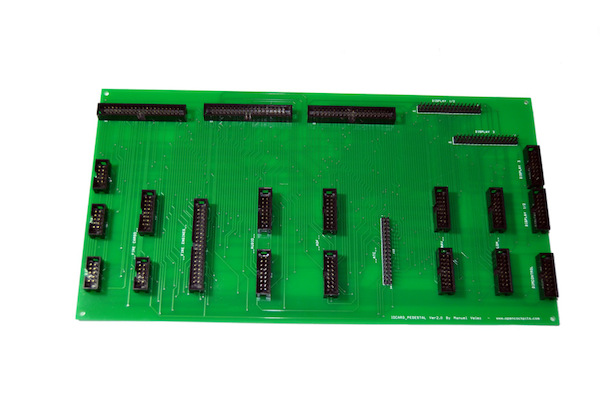

The Pedestal Card has been designed to connect different IDC panels to IOCards electronics.

The connection between the panels and IOCards is done by ( 10,16 or 40 wires depending on the panel) ribbon cables , virtually and do not need any welding .

IMPORTANT: To complete a full pedestal two Pedestal cards are necessary.

Each card connects with the following:
1 COM
1 NAV
1 ADF
1 AUDIO

One of the cards connect at once:
ATC
Cargo Fire
Stab Trim

The other would connect at once:
Rudder Trim
Fire Engines
Radar
Lighting

Moreover, each card would connect :
1 Card Master
3 Display Cards Multiplexed

To complete the installation of the full pedestal also be required :

1 USBDimcontrol to control all the backlight.
1 USBExpansion , in order to connect the Master card to the USB port.
1 Card USBServos to connect the Rudder Trim indicator .

The installation of the modules to the card give fixed allocations of inputs and outputs, so that all scripts and software of the Pedestal, would be compatible with our Complete Pedestal Plug & Play .

For more information: Manual
