F4E Phantom II Late

The later version of the F-4E, an improved version of the F-4D, is finally available, equipped with the M61A1 20mm Vulcan cannon as the first fixed equipment in the extended nose.
The leading edge flap was changed to a movable slat in order to further improve air combat performance than the previous model, which adopted a hard wing with a fixed leading edge flap. This is a point that distinguishes it from the earlier model in appearance.
A gunblast diffuser has been added to the machine gun muzzle. Other, later versions had AN/ALR-46 RHWR antennas attached to the wing tips.
Even the electro-optical target identification sensor (TISEO) on the leading edge of the left inner wing, which was adopted in some late models, and the AN/ARN-101 antenna fairing on the back of the fuselage are flawless.
Keep an eye on the ever-growing SWS "F-4" series!

What are the characteristics of 1/48 F-4E Late “Missouri ANG”?

1. The joy of covering the "F-4" series with SWS kits. SWS has a lineup of 7 types of "F-4" Long Type: E early/late E, EJ/EJ modified, F/F ICE, and G.

2.The characteristics of Long Type are the long nose and the Vulcan cannon fairing below, and the silhouette is also very different from Short nose type. The world's first correct and beautiful external shape, accurate research, and ease of assembly, which were achieved with Short nose, are inherited.
In order to achieve further evolution, we have once again conducted thorough interviews and historical research on all aspects of the product.

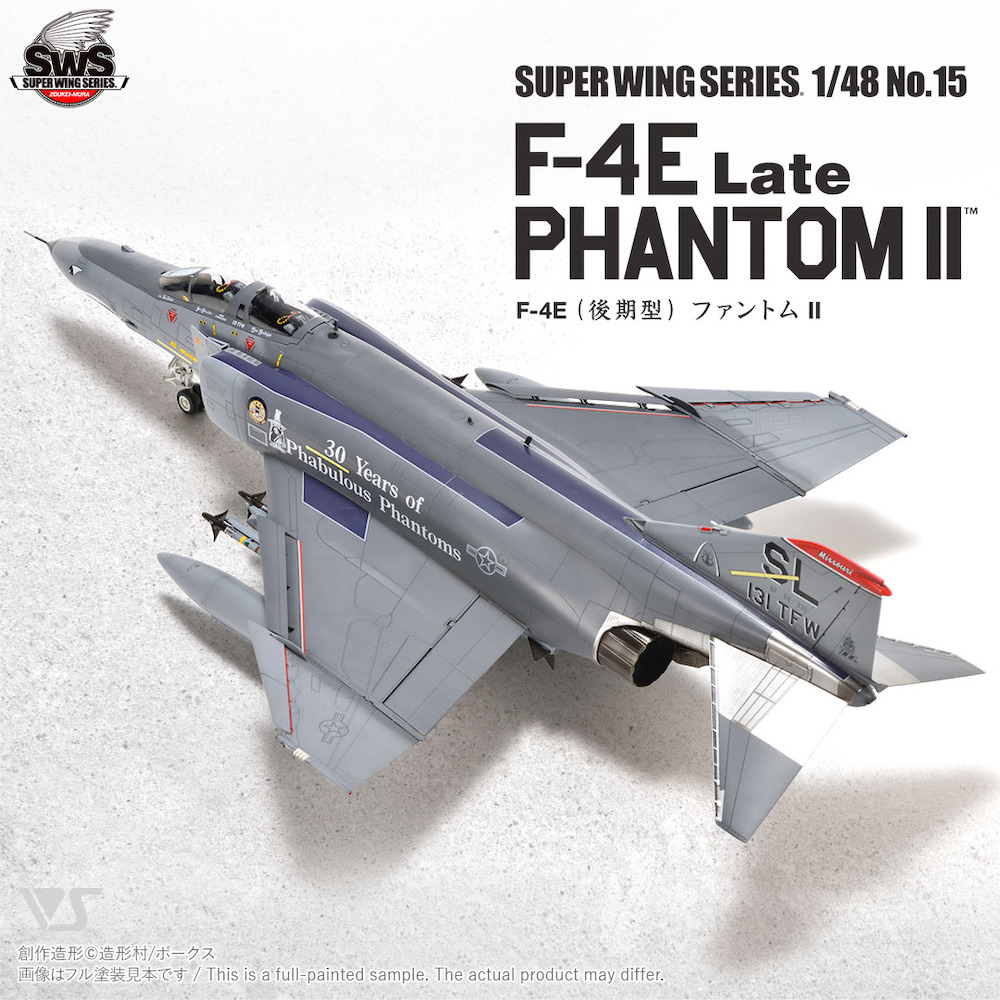

3. The marking uses the 131TFW commander aircraft “F-4E, 131st TFW, 110th TFS, Sr.no.68-0338 “Missouri ANG”” to celebrate the 30th anniversary of the Phantom that appeared in July 1988.
It is characterized by the words "30 Years of Phabulous Phantoms" written in large letters on the left side of the fuselage, and the rare gray camouflage that is a mixture of Hill Gray I and II.

A closer look at the internal structure of the F-4 series' first machine gun-equipped model.

A 6-barreled 20mm Vulcan gun M61A1 is mounted on the underside of the nose as a fixed armament, and the gun sight is replaced with an ASG-26. As a measure against heat and vibration when firing the machine gun, the design of the bullet feeding system was changed, and the FCS was replaced with the small and vibration-resistant AN/APQ-120.
By converting to solid state and combining the entire FCS into one compact system, it was possible to store it in the narrow nose of the aircraft. With the SWS kit, the blast diffuser attached to the Vulcan muzzle of Block 45 and later models can also be selectively reproduced.
Please pay attention to the fairing shape, which looks simple at first glance, but is composed of a complex three-dimensional curved surface.

What are the F-4E's "wings" that give it even greater air combat performance?

The main wing differs depending on the development period, and the early model adopted a hard wing type with the inside of the main wing leading edge flap fixed like the J type. In later versions, the leading edge flap was changed to a movable slat in order to improve maneuverability during air combat.
Furthermore, some later models had TISEO installed on the leading edge of the inner wing of the left main wing. The F-4E's stabilizer was changed to a leading edge slot like the J model, and some aircraft had arrow-shaped reinforcing plates added to the top and bottom of the stabilizer.
It's also fun to enjoy the evolution of each Long Type with the SWS kit.
