Assorted Allied WW2 aircraft antennae

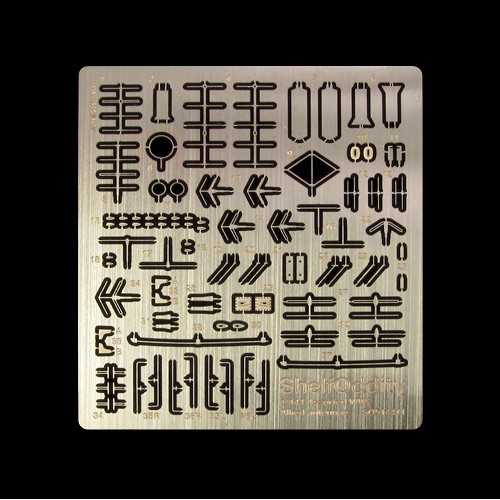

A comprehensive photo etched update detail set for various WW2 Allied airplanes.

Main features:

- 1 pc. of Air-to-Surface Vessel (ASV) Mk.II radar Yagi transmitter antenna mounted on pylon under the nose, recommended for Beaufort models

- 1 pc. of ASV Mk.II radar Yagi transmitter antenna mounted directly (without pylon) under the nose, recommended for Catalina, Hudson models

- 2 pcs. of ASV Mk.II radar Yagi receiver antennae mounted on pylons under both wings, recommended for Beaufort, Catalina, Hudson models

- 1 set of side-mounted ASV Mk.II radar rail receiver antennae, recommended for Beaufort models

- 2 pcs. of ASV Mk.III radar receiver Lucero antennae, recommended for Sunderland and other late-war and early post-war British a/c models

- 1 pc. of diamond-shaped Radio Direction Finder (RDF) aerial, recommended for RAAF Beaufort models

- 2 pcs. of smaller RDF loops, recommended for Havoc, etc. models

- 1 pc. of larger RDF loop, recommended for Hudson, etc. models)

- 1 pc. of night landing aid (beam approach) aerial, recommended for Beaufort models

- 1 pc. of night landing aid (beam approach) aerial, recommended for Boston Turbinlite models

- 1 pc. of night landing aid (beam approach) aerial, recommended for Beaufighter models

- 2 pcs. of Airborne Interception (AI) Mk.IV radar transmitter flat-blade antennae, recommended for Beaufighter, Defiant, Mosquito NF Mk.II models

- 2 pcs. of AI Mk.IV radar transmitter wire-loop antennae, recommended for Beaufighter, Boston Turbinlite, Defiant, Mosquito NF Mk.II models

- 2 pcs. of outboard AI Mk.IV radar (target direction) wing receiver antennae, recommended for Beaufighter models

- 2 pcs. of inboard AI Mk.IV radar (target direction) wing receiver antennae, recommended for Beaufighter models

- 2 pcs. of starboard wing AI Mk.IV radar (target ceiling) receiver antennae, recommended for Beaufighter, Mosquito NF.II models

- 1 pc. of Monica tail-warning radar antenna, recommended for RAF heavy bomber models

- 1 pc. of nose-mounted SCR-540 radar transmitter antenna, recommended for Havoc, P-70 models

- 2 pcs. of side-mounted SCR-540 radar (target direction) receiver antennae, recommended for Havoc, P-70 models

- 2 pcs. of starboard wing SCR-540 radar (target ceiling) receiver antennae, recommended for Havoc, P-70 models

- 2 pcs. of side-mounted SCR-729 IFF antennae, recommended for P-61 models

- 6 pcs. of AN-69A antennae of SCR-518/718 radar altimeter, recommended for late mark Mosquitoes, P-61, early post-war RAF a/c models

Frets sizes: 0.1 mm – 40x45 mm and 40x15 mm

Download instruction manual (.pdf)
